Hose pump

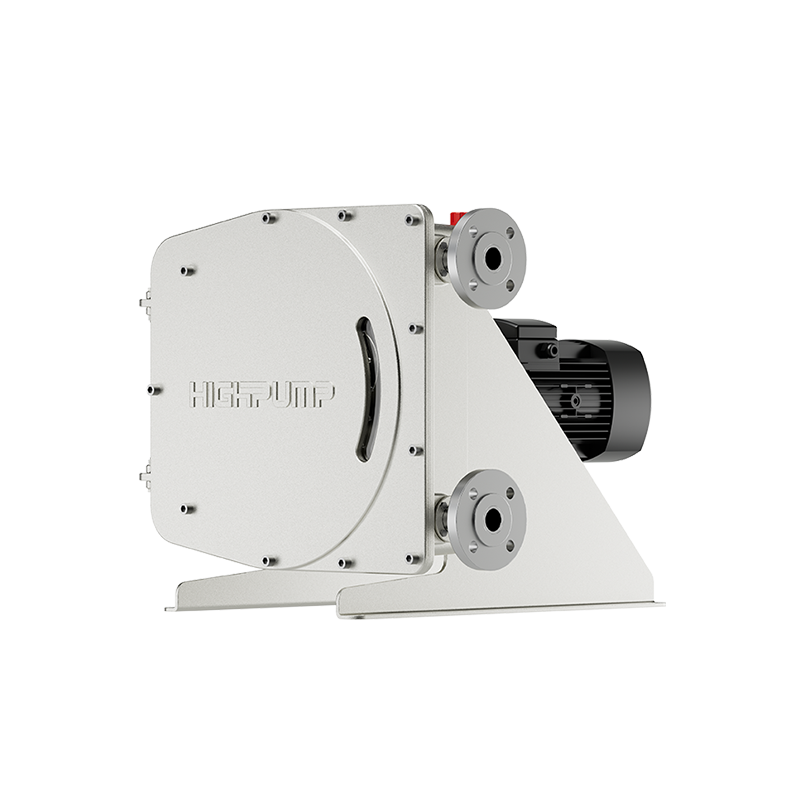

Stainless Steel Series
The stainless steel hose pump, pump body and brackets are all made of stainless steel, which can better deal with strong corrosive environments than conventional hose pumps; at the same time, the pump body does not need to be painted, and can also be used for nuclear power and other higher requirements field.
Inquiry Now
Product Introduction

FEATURES

>Rolling extrusion, Soak in lubricating oil or grease, Extending hose life

>IOT intelligence, real-time online condition monitoring, preventive hose replacement

>Compact structure, small installation space, light weight, far better than the construction hose pump

ADVANTAGES

>All made of stainless steel, which can better deal with strong corrosive environments

>Suitable for continuous heavy duty service

>Excellent dosing of corrosive chemicals

>Self-priming up to 9.8 m,no differential level required

>Reversible, free choice of inlet and outlet ports,easy to clean

>No mechanical seal or stuffing box

>Dry running,without any damage to mechanical parts

>Minimum time for maintenance and easy hose replacement

>Low sound level : ≤ 70 dB

Technical Data

Unit(L/H)

Model 20RPM 40RPM 60RPM 80RPM 100RPM
HH10.2 36.7 73.4 110.1 146.8 183.5
HH20.2 206.7 413.4 620.1 826.8 1033.5
HH25.2 386.7 773.4 1160.1 1546.8 1933.5
HH40.2 1400 2800 4200 5600 7000
HH50.2 4200 8400 12600 16800 21000
HH65.2 8000 16000 24000 32000 40000
HH80.2 17000 34000 / / /
